The Bildspec Series 100 Operable Wall

was designed for applications where a higher acoustic rating and more robust construction are important considerations – such as school classrooms, training rooms and conference facilities. Panel thickness is 100mm and sound ratings of up to Rw 50 are available for this product.

The Series 100 builds on the success

of our over 50 year’s experience in the folding door industry. Almost unlimited variations in track and panel configuration and finish options, together with our manufacturing flexibility, allow you to have the system that is right for your project.

Let Bildspec Provide You with Options for Series 100 Operable Walls

Did you know that series 100 operable walls can provide you with multiple ways to customise the space in a room? Turn to the professionals at Bildspec to learn everything that you need to know about moveable walls and how they can help your business or classroom.

  • General

    The operable wall shall be Bildspec Series 100/Series 100R. Note: the manufacturer shall guarantee that the operable walls are like the construction of those tested to AS 1276 by an independent Australian Acoustic Laboratory. The walls shall be installed by an authorised representative of the manufacturer and shall consist of supported, manually operated panels that can be linked together to form a sound retardant closure.


  • Panels

    Panels shall be 100mm thick and constructed with two outer skins of particle board or MDF board, separated by appropriate acoustic insulation contained in an extruded aluminium perimeter frame with interlocking vertical stiles. Panel faces shall be replaceable in the field.


    A. 100 Overlay

    B 100 Standard stiles

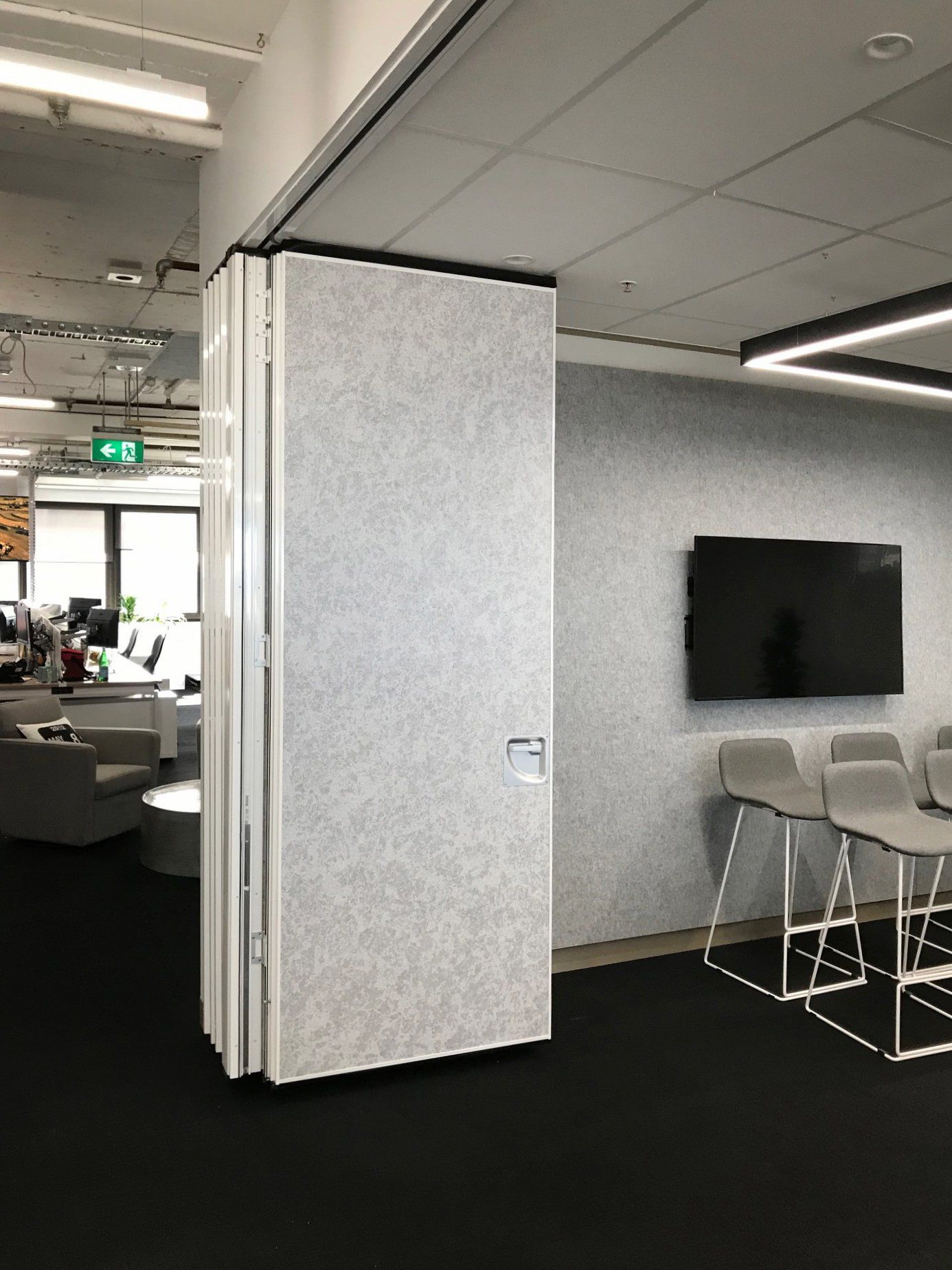

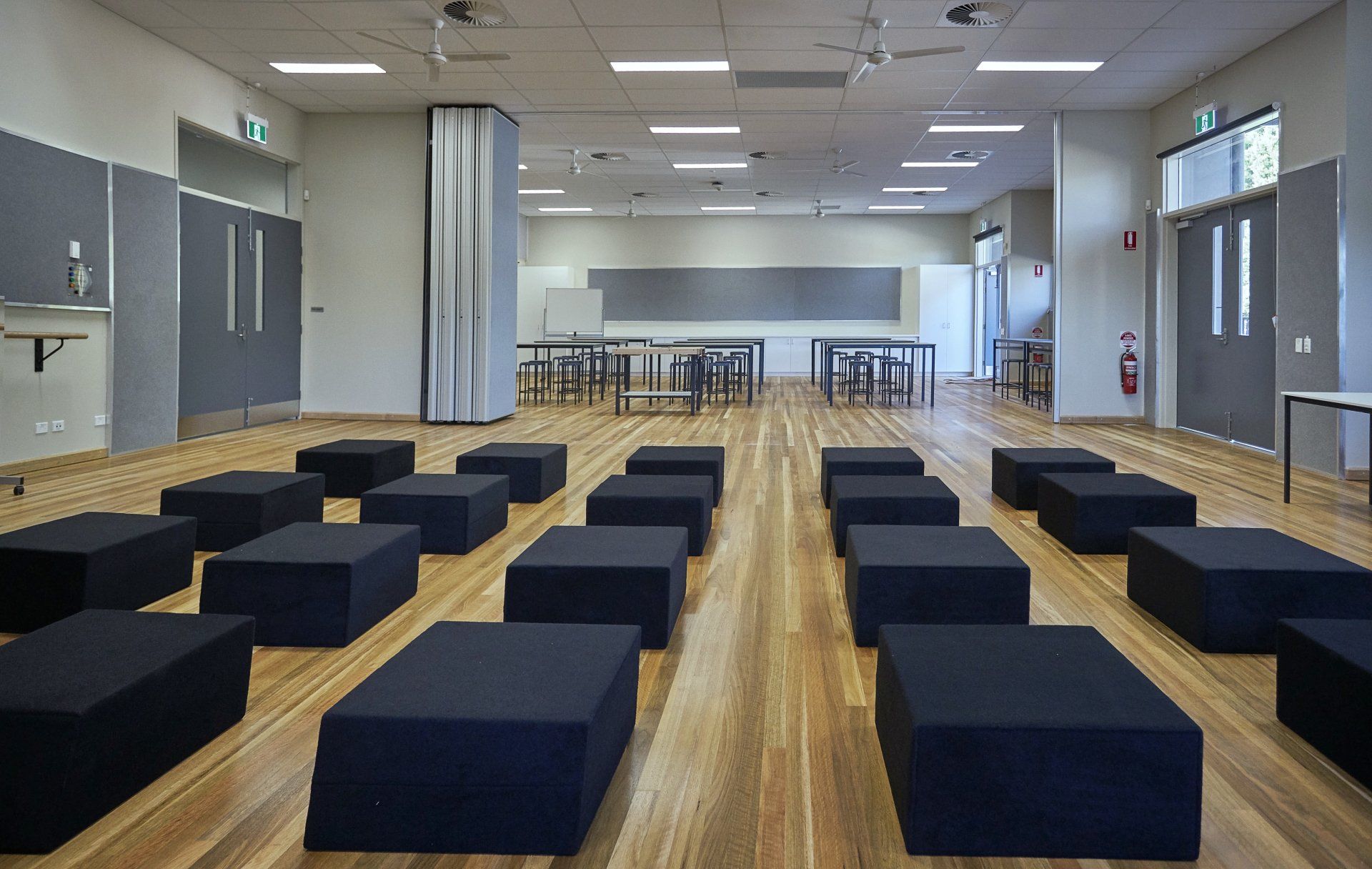

  • Stacking Types

    There are three main configurations by which operable wall panels can stack to the side of the opening:


    Centre Stack: Every panel hangs from a central trolley and typically hinged in pairs, perpendicular to and through the centre of a single overhead track.


    Side Stack: Panels are hung from two carriers at the top end of each panel. When stacking, one carrier stays on the main track and the other in the side track.


    Remote Stack: Panels have Omni-directional carriers to negotiate L or T junctions and panels are stacked entirely away from the main track.


    (Please click on this link to view stacking configurations).


  • Acoustic Seals

    Series 100 - acoustic seals at track and floor shall be dual, triple finger extruded vinyl.


    Series 100R - acoustic seals at track shall be dual, triple finger extruded vinyl and at floor shall be mechanically operated retractable type. Variations in the retractable top and bottom seals are available on request.


    A. 100 Standard with bottom Sweep seal

    B. 100 Standard with Bottom retractable Seals

  • Closure System
    • An Expanding Panel is expanded sideways to lock the wall in place via a removable handle at the stacking end of the wall.

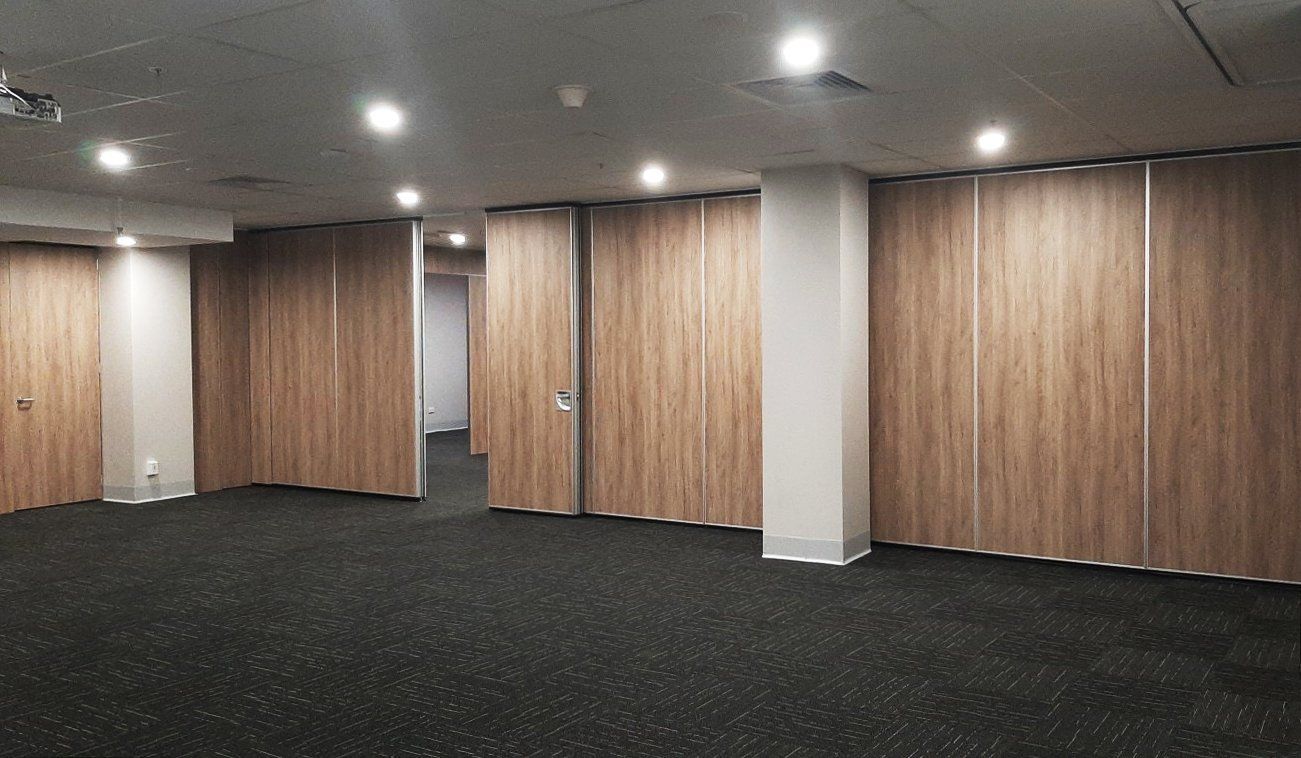

    • Door Panels can be used on walls up to 3000mm high. The last panel (end of the wall) can be hinged off the end jamb or second to last panel. Standard width is 900mm.

    A. Expander

    B. Full height pass door

  • Acoustic Performance

    Bildspec 100 Series Operable Walls have been tested for their acoustic performance at CSIRO’s acoustic testing facilities in Clayton, Victoria. We can provide walls that are rated 45Rw, 47Rw, 49Rw, and 52Rw, in accordance to AS1191.


    Please clickon this link for more information on our Acoustic Testing and Certification


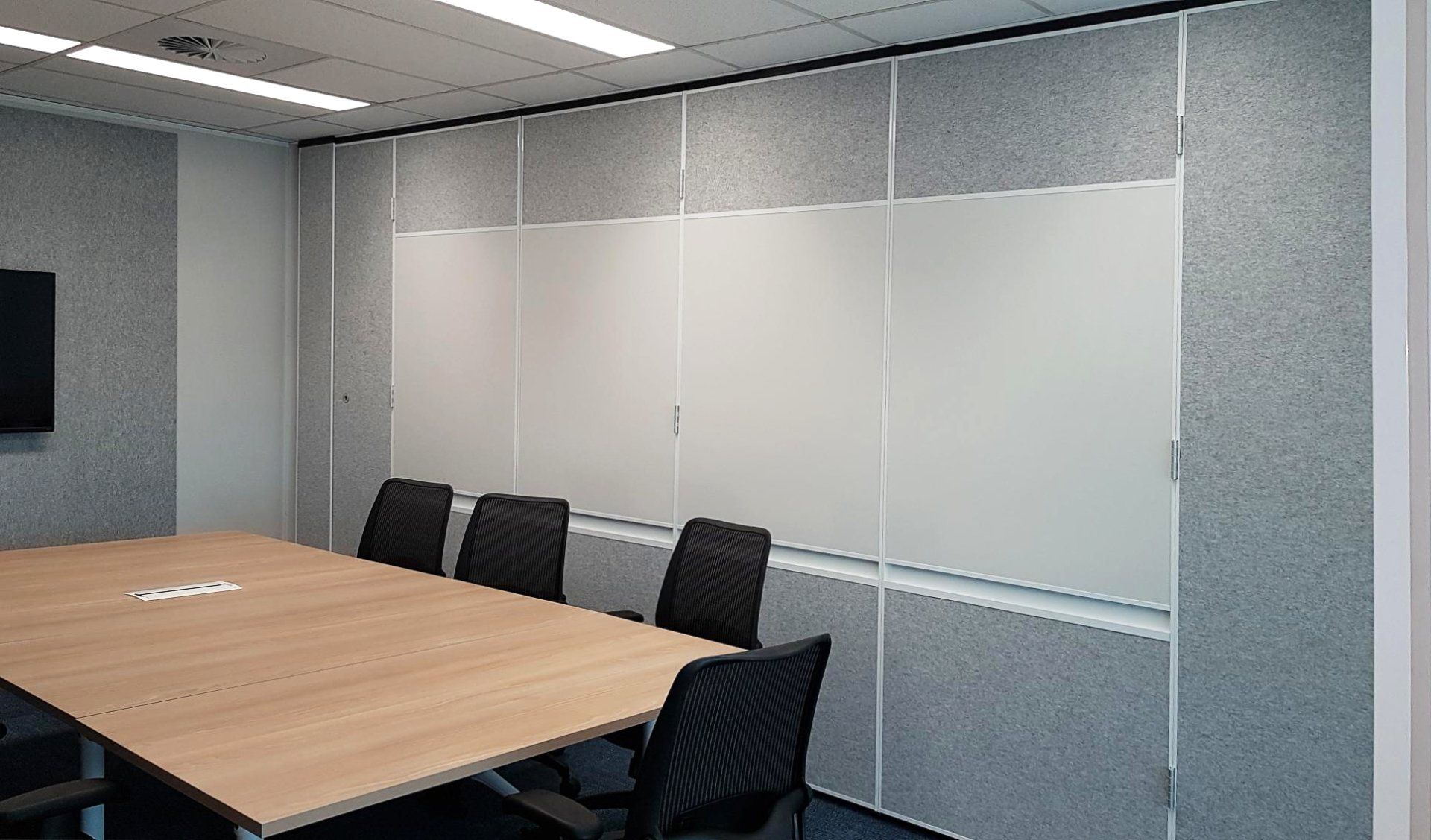

  • Panel Surfaces

    Select from:

    • Nylex Flexiclad Vinyl Laminate
    • Wood Veneer
    • Front Runner™ Fabric
    • Plastic Laminate
    • Prepared for on-site painting by others
    • Or specify any suitable vinyl or textile wallcovering

  • Accessories & Options

  • Panel Weight

    Approximately 30-45kg per square metre depending on sound rating.

  • Safe Working Load Certification

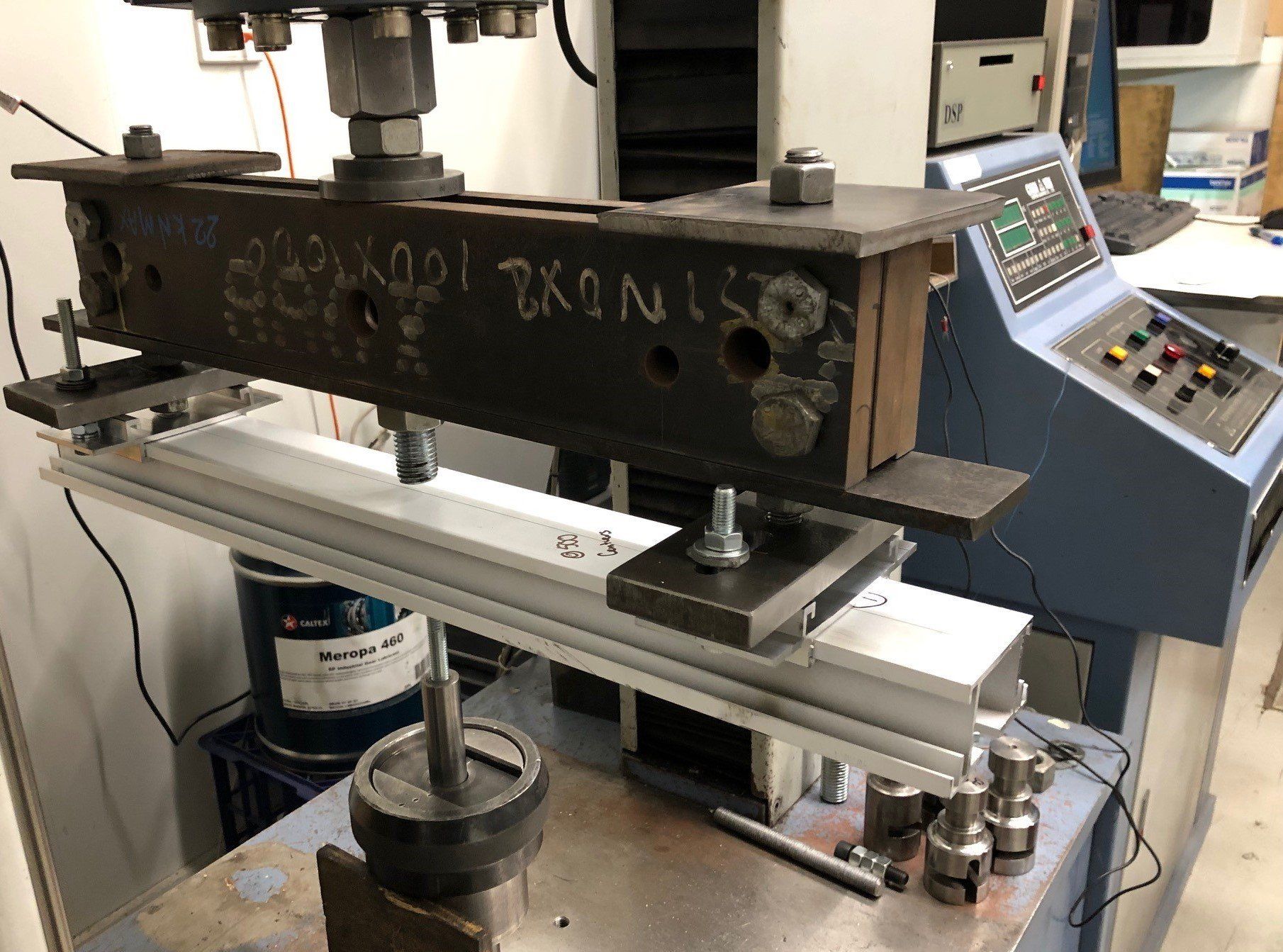

    Bildspec, in conjunction with a testing lab, performed a variety of pull tests on their complete systems to ascertain the maximum failure load of their track and trolley systems when installed.


    Using a 200kN testing machine, we loaded the systems up at 5mm/min to produce analytical graphs for our consulting engineers to calculate the SWL for our complete installed system.


    The engineers calculated the SWL using factors of safety and in conjunction with AS/NZS 1170.0 - 2002/ Amdt 2011 Structural Design Actions - Part: 0 general principles, and AS/NZS 1170.1 - 2002/ Amdt 2011 Structural Design Actions - Part: 1, permanent, imposed, and other actions.


    Bildspec completed this certification to make sure our systems were fir for purpose and will perform correctly every day of the year.


    (Please click on this link for more information on our Safe Working Load Testing)

  • Warranty

    Bildspec operable walls shall be warranted against defect in materials and work for 12 months from installation.


    (Please click on this link to view a sample warranty letter).

  • Typical Applications

    Operable partitions are used for:

    • Businesses and offices
    • Boardrooms and meeting rooms
    • Reception centres
    • Schools, Universities, and Colleges
    • Hotels
    • Restaurants and cafes
    • Convention centres
  • Benefits Of Using Series 100 Operable Walls
    • Creating flexible, adaptable spaces
    • Creating attractive, open-plan environments
    • Reduces noise transmission and reverberation
    • DDA-compliant
    • Easy to use
  • What Sets Bildspec Apart Regarding Series 100 Operable Walls?

    We are proud to be your first choice for operable walls. When you work with our company, you can expect nothing less than the following:


    • We deliver on time
    • High quality at great value
    • Average of 8 years industry experience per employee
    • We are customer service focused
    • We deliver on time
    • We offer technical expertise
    • We provide fit-for-purpose acoustic solutions to the built environment with the end users experience front of mind
    • We enjoy our work.
    • Safety First - with everything we do
    • High quality at great value
